PhysioMuscle Simulator Machines

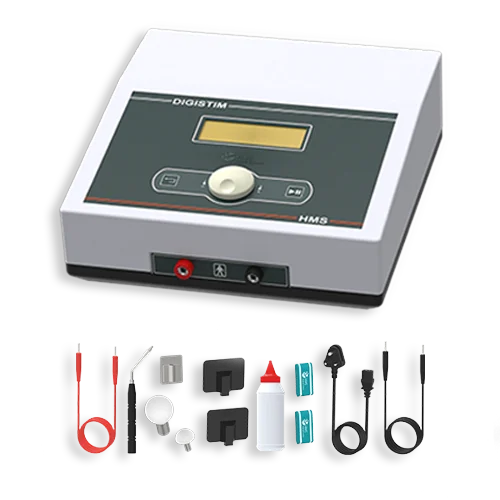

DIGISTIM®
DIGISTIM is a Digitalized stimulator unit with diagnostic, therapeutic, and TENS facility. Treatment mode, treatment time, output current in mA and other parameters are displayed in the LCD. Encoder used to select the modes and parameters.
Product Description
In IG mode Rectangular / Triangular pulses can be selectable.
Technical Specifications
| Treatment modes | Galvanic, Int.Galvanic, Faradic, Surged Faradic, TENS, TENS Burst |
|---|---|
| Faradic: Freq./ P.width | 50 Hz / 7 mSec |
| Faradic: Surge ON time | 1 – 10 sec (1 sec step) |
| Faradic: Surge OFF time | 1 – 10 sec (1 sec step) |
| INT. GAL: Therapeutic | 30 – 300 mSec (10 mSec step) |
| INT. GAL: Diagnostic | 0.01, 0.03, 0.1, 0.3, 1, 3, 10, 30, 100, 300 and 1000 mSec |
| INT. GAL: Pulse type | Square, Triangular |
| TENS: Frequency | 2 – 250 Hz in (1 Hz step) |
| TENS: P. Width | 20–250 sec (1m sec step) |
| TENS: Output current | 0 – 50 mA |
| TENS: Timer | 1 -99 mins |
| TENS: 1 -99 mins | 1 – 10 Hz |
