PhysioContinuous Passive Motion Equipment

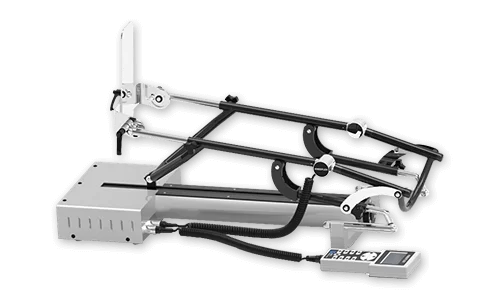

KNEEFLEX®
Kneeflex is advanced and trend setter Continuous Passive Motion Equipment
Product Description
Universal left / right design
Total noiseless smooth operation
Ultra-wide carriage 28 cm from the center of the carriage
Sturdy DC motor for smooth operation
Universal input internal power supply.
Convenient 4.5m long power cord
Light weight at only 14.75 Kg
Easy conversion from adult to pediatric
1° Accuracy, contact less magnetic sensor for angle detection
Progressive memory for ten patients handset
Maintenance free stainless steel plated ball screw
Technical Specifications
| Model | Kneeflex |
|---|---|
| Design Type | Anatomical |
| Operation Mode | Electrical |
| Target Body Part | Knee, HIP |
| Range of Motion | -10 extension – 120 flexion (1 settings) |
| Pauses | 0 – 99 seconds (extension and flexion) |
| Speed | 50 – 110 / minute in 10 steps |
| Treatment Time | 5 min – 24 Hrs- Real time clock in 24 Hrs format |
| Length Range | Calf 32 – 54 cm, Thigh 34 – 50cm |
| Force Reversal | 10 – 30 kgs in 10 steps |
