PhysioContinuous Passive Motion Equipment

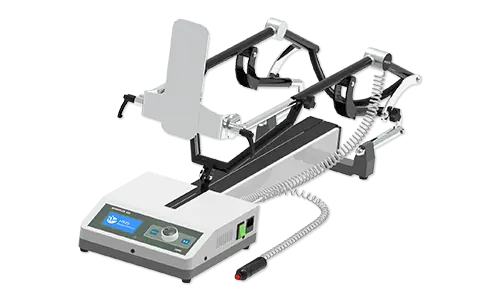

KNEEFLEX® Es
KNEEFLEX Es is advanced and trend setter Continuous Passive Motion therapy (CPM). Continuous Passive Motion is a postoperative procedure designed to aid in patient recovery after joint surgery, soft tissue surgical procedure or trauma
Product Description
Universal left / right design
Total noiseless smooth operation
Ultra-wide carriage 28cm(11″) from the center of the carriage
Sturdy DC motor for smooth operation
Universal input internal power supply.
Convenient 4.5m long power cord
Light weight at only 14.75 Kg
Easy conversion from adult to pediatric (no adapter pieces needed)
1° Accuracy, contact less magnetic sensor for angle detection
Progressive memory for ten patient's handset
Maintenance free stainless steel plated ball screw
Technical Specifications
| Model | Kneeflex Es |
|---|---|
| Design Type | Anatomical |
| Operation Mode | Electrical |
| Target Body Part | Knee, HIP |
| Range of Motion | -10° extension – 120° flexion (1° settings) |
| Pauses | 1 – 99 seconds (extension and flexion) |
| Speed | 80 sec / 100° (Low), 60 sec / 100° (Medium), 35sec / 100° (High) |
| Treatment Time | 5 min – 3 Hrs |
| Length Range | Calf 40 – 62 cm, Thigh 28 – 46cm |
| Progressive angle | 0° to 20° (increased automatically during the set treatment time) |
| Mains Voltage | 100 – 240V / 50 or 60 Hz |
| Safety Class | Class I, Type B (IEC 60601 -1) |
| Dimensions | L x B x H – 90 x 29.5 x 25 cm |
| Weight | 14.75 Kgs |
| Max Patient Weight | 160 kg |
