PhysioMuscle Simulator Machines

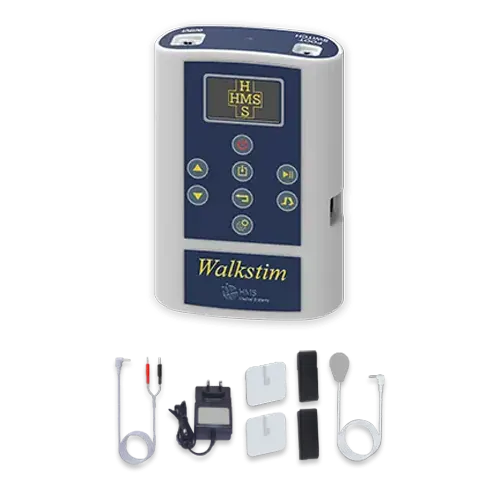

WALKSTIM®
WALKSTIM is an advanced single channel functional electrical stimulator for dropped foot. Footswitch controlled stimulator designed to correct dropped foot in upper mot neuron conditions.
Product Description
These condition include stoke, multiple sclerosis, incomplete spinal cord injury (T12 and above)head injury, cerebral palsy, Parkinson’s disease and hereditary spastic pararparesis. WALKSTIM has Soft touch keys for selection of programs and built-in rechargeable battery.
Technical Specifications
| Frequency | 20 – 120Hz |
|---|---|
| Pulse width | 400 – 1000 micro seconds |
| Output Current | 10 – 100 mA |
| Output Time | 0.3 – 6 sec |
| Delay | 0 – 2 sec |
| Ramp Time | 0 – 2 sec |
| Extension Time | 0 – 2 sec |
| Output Waveform | Symmetrical & Asymmetrical Biphasic |
| Exercise Duration | 5 – 100 min |
| Exercise ON period | 1 – 10 sec |
| Exercise OFF period | 1 – 10 sec |
| Exercise Ramp Time | 1 – 10 sec |
| Display | Graphic OLED Display |
| Power Source | Dual Power (Mains/Battery) |
